Stainless Steel & BRASS Mini Valves

with PEEK™ Seats

Stainless Steel Mini Valves with  PEEK™ Seats - 1/4" NPT Female to Female
1/4" NPT Female X Female

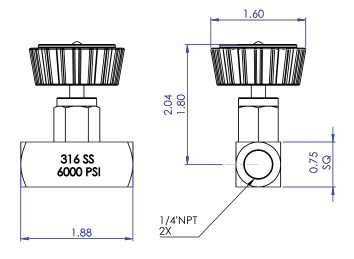

Diagram of Stainless Steel Mini Valves with PEEK™ Seats - 1/4" NPT Female to Female

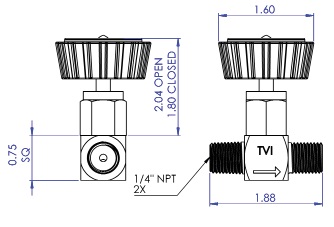

Diagram of Stainless Steel Mini Valves with PEEK™ Seats - 1/4" NPT Male to Male
1/4" Male X Male
Stainless Steel Mini Valves with PEEK™ Seats - 1/4" NPT Male to Male

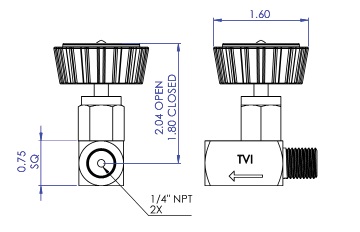

Diagram of Stainless Steel Mini Valves with PEEK™ Seats - 1/4" NPT Male to Female
1/4" Male X Female
Stainless Steel Mini Valves with PEEK™ Seats - 1/4" NPT Male to Female

Part Number 316 SS Brass Configuration
TV-MV-GS4M4F296 X   1/4" Male x 1/4" Female
TV-MV-GS4F296 X   1/4" Female x 1/4" Female
TV-MV-GS4M296 X   1/4" Male x 1/4" Male
TV-MV-GB4M4F296   X 1/4" Male x 1/4" Female
TV-MV-GB4F296   X 1/4" Female x 1/4" Female
TV-MV-GB4M296   X 1/4" Male x 1/4" Male
