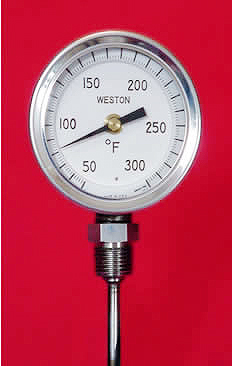

3" Head Diameter - Bottom Connected 1/2" N.P.T. - Model 4313

3" Head Diameter - Bottom Connected 1/2" N.P.T. - Model 4313

Specifications and Features

  • Dial diameter 3"
  • Standard stem lengths: 2½", 4", 6", and 9". Additional stem lengths available by special order
  • Stem diameter 1/4"
  • Bottom connected stem
  • Scale length 5.8"
  • Permanent metal scale plates
  • Convenient side located adjustment for recalibration
  • 1/2" N.P.T. connection
  • Breakage resistant glass windows
  • All 304 stainless steel construction
  • Removable bezel
  • Stainless steel welds for maximum corrosion resistance
  • Hermetically sealed against moisture
  • Rated Accuracy: ± 1% of total scale range
  • Custom stems longer than 36" are 3/8" diameter except for last 6" which is 1/4" diameter
  • Liquid filling available

Model 4313 (Bottom Connected - Straight Form)

Factory Stocked Temperature Ranges

Stem Length ==> Range(°) 2.5" Model / Catalog No. 4" Model / Catalog No. 6"Model / Catalog No. 9" Model / Catalog No.
-40 to 120 °F 4313-02200DF 4313-04200DF 4313-06200DF 4313-09200DF
25 to 125 °F 4313-02200NF 4313-04200NF 4313-06200NF 4313-09200NF
0 to 200 °F 4313-02200IF 4313-04200IF 4313-06200IF 4313-09200IF
20 to 240 °F 4313-02200MF 4313-04200MF 4313-06200MF 4313-09200MF
50 to 300 °F 4313-02200QF 4313-04200QF 4313-06200QF 4313-09200QF
50 to 400 °F 4313-02200RF 4313-04200RF 4313-06200RF 4313-09200RF
50 to 500 °F 4313-02200SF 4313-04200SF 4313-06200SF 4313-09200SF
150 to 750 °F 4313-02200VF 4313-04200VF 4313-06200VF 4313-09200VF
200 to 1000 °F 4313-02200WF 4313-04200WF 4313-06200WF 4313-09200WF
0 to 50 °C 4313-02200HC 4313-04200HC 4313-06200HC 4313-09200HC
-10 to 110 °C 4313-02200GC 4313-04200GC 4313-06200GC 4313-09200GC
0 to 150 °C 4313-02200JC 4313-04200JC 4313-06200JC 4313-09200JC
0 10 300 °C 4313-02200MC 4313-04200MC 4313-06200MC 4313-09200MC

Note: For correct indications, the stem should be immersed at least 2" in liquids and 4" in gases. Maximum head temperature 220°F (104°C} with plastic window. *Not recommended for continuous operation above 800°F.
