Outage Tubes

Mini Valve Cylinder - Outage Tube

Characteristics

Outage tubes provide a convenient way to create a vapor space in a cylinder containing gases that under liquid when held under sufficient pressure. This vapor space is essential when transporting liquified gases from one locatin to another. Small rises in temperature can dramatically increase the pressure in a cylinder if a vapor space is not created.

Outage is the vapor space in the cylinder expressed as a percentage of the total volume of the cylinder.

% Outage = (vapor space/total volume) x 100

The length of the outage tube determines the amount of vapor space. DeTec supplies a universal length of 11.9". This allows the user to trim the tube to lenght and create the % of outage desired.

Dimensions

Cylinder Size L=Length @ 20%
150 cc 1.50"
300 cc 2.25"
400 cc 2.80"
500 cc 3.25"
1000 cc 2.63"



Features

  • Standard material is 316 SS; other materials available on request
  • Fitting is marked "Outage Tube" for easy identification
  • Universal tube length for easy sizing
  • 5/16" Diameter Tubing

Specifications

  • See ASTM D1265, Standard Practice for Sampling Liquified Petroleum (LP) Gasses.

Outage Tubes Dimensions

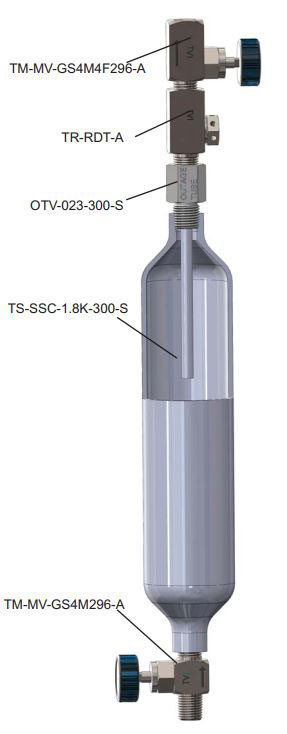

Mini Valve With Outage Tube

Mini Valve with Outage Tube

Part No.
(###=Outage Code)
Minimum Outage (%)
  10% 20% 30% 40% 50%
OTV-###-150-S 011 015 018 021 025
OTV-###-300-S 017 023 030 037 043
OTV-###-500-S 027 034 045 056 067
OTV-###-1000-S 029 046 060 075 091

NOTE: (### = Outage Code)

Rupture Disc Assy With Outage Tube

Rupture Disc Assembly with Outage Tube

Part No.
(###=Outage Code)
Minimum Outage (%)
  10% 20% 30% 40% 50%
OTRD-###-150-S 011 015 018 021 025
OTRD-###-300-S 017 023 030 037 043
OTRD-###-500-S 027 034 045 056 067
OTRD-###-1000-S 029 046 060 075 091

NOTE: (### = Outage Code)

Outage Tubes For TVI Cylinders

Outage Tubes Designed to Fit Detect Cylinders

Part No.
(### = Outage Code)
Minimum Outage (%)
  10% 20% 30% 40% 50%
OT-###-150-S 011 015 018 021 025
OT-###-300-S 017 023 030 037 043
OT-###-500-S 027 034 045 056 067
OT-###-1000-S 029 046 060 075 091

All Outage Tube Components Are 316 SS

NOTE: (### = Outage Code)
