Gas Sampling Valves

SS Series - Characteristics

  • The SS Series needle valve is designed for steam cleaning of cylinders with the valves in place

Features

  • Non-Rotating Plug: A non-rotating plug lifts clear of the orifice when the valve is fully open. This allows a straight thru path for easy steam cleaning of the cylinder with the valves in place.
  • Stem Packing: The valve has alternating layers of PTFE rings and Viton O-rings. The results in a very low torque and easily adjustable packing that yields a long life without leaks.
  • RPTFE: The RPTFE seats is perfect for high temperature steaming. It will not distort and results in a very low torque seal.
  • Electro-Polishing: The process areas of the valve are electro-polished. This makes the valve very clean and easy to steam out. It also makes the threads much smoother and less likely to gall.
  • All metal parts are 316L. This allows the electro-polishing to fill in the microscopic cracks and crevices caused by machining the metal.
  • Three 1/4" configurations:
    MNPT x FNPT, MNPT x MNPT, FNPT x FNPT

Specifications

  • Pressure Rating: 2,500 psig at 200°F
  • Temperature Rating of Soft Goods 300°F

Gas Sampling Valve Diagram - ¼@quot; Male X Male
¼" Male X Male

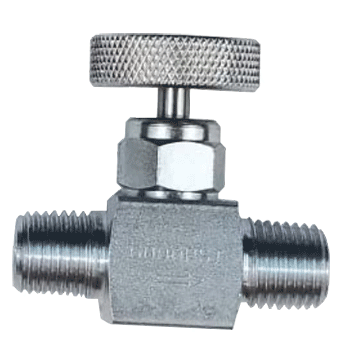

¼@quot; Male X Male Gas Sampling Valve

Gas Sampling Valve Male x Male Side View

S Series - Characteristics

  • The S Series needle valve is designed expressly for Liquid & Gas Sampling.

Features

  • Stem Packing: The valve has alternating layers of Teflon rings and Viton O-rings. The results in a very low torque and easily adjustable packing that yields a long life without leaks.
  • PTFE Seat: The PTFE seat results in very torque and higher temperature specifi cations.
  • Electro-Polishing: The process areas of the valve are electro-polished. This makes the valve very clean and easy to steam out. It also makes the threads much smoother and less likely to gall.
  • All metal parts are 316L. This allows the electropolishing to fill in the microscopic cracks and crevices caused by machining the metal.
  • Three ¼" configurations:
    MNPT x FNPT, MNPT x MNPT, FNPT x FNPT

Specifications

  • Pressure Rating:
    2,500 psig at 100°F
  • Maximum Temperature for steam out - 300°F

Dimensions: All 3 Configurations:

Part Number 316 SS C.S. Configuration
MPV-GS4M4F286 X   1/4" Male X 1/4" Female
MPV-GS4F4F286 X   1/4" Female X 1/4" Female
MPV-GS4M4M286 X   1/4" Male X 1/4" Male

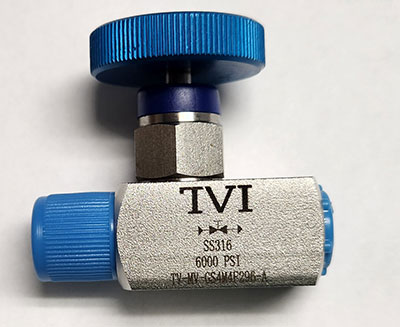

Gas Sampling Valve - Male X Female
¼" Male X Female

Gas Sampling Valve - Male X Female

¼" NPT Female X Female

Gas Sampling Valve - Female X Female

Gas Sampling Valve - NPT Female X Female
