Constant Pressure Sample Cylinder

Designed as DOT 3E with Special Permit #SP-20245

Constant Pressure Sample Cylinder

Features

  • ELECTRO POLISHED CYLINDER BORE
  • NON-HYDRO CARBON LUBRICANT
  • VERY LOW FRICTION FOR LOW PRESSURE APPLICATIONS
  • STRAIGHT THRU VALVE DESIGN ON NEEDLE VALVES
  • EASY CLEAN UP
  • GAUGES CAN BE SIZED TO THE APPLICATION
  • CYLINDER RATED FOR 1800 PSI
  • EASY TO READ MAGNETIC SCALE
  • TEFLON MIXING BALL MEANS NO DENTS OR SCRATCHES TO CYLINDER BORE
  • RATED FOR 300°F

300 cc Size
SHOWN

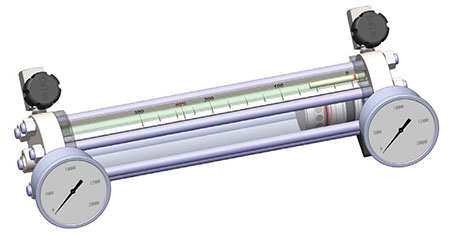

Constant Pressure Sample Cylinder Diagram

Specifications

Description Spec
Wetted Metal 316 SS
Elastomers Viton; 90A Molythane
Tie Rods & Nuts 304 SS
Mixing Ball PTFE
RUPTURE DISC INCONEL 600
Pressure Rating of Cylinder 1800 PSi @ 200°F
Valve Seats Delrin
Valve Seals Viton 75
Temperature Rating 300°F

Dimensions & Weights

Size Overall Length Weight
300 cc 13.6" 12.3 lbs
500 cc 20.5" 13.0 lbs
1000 cc 34.9" 19.0 lbs

Constant pressure cylinder - sizes - gauges
