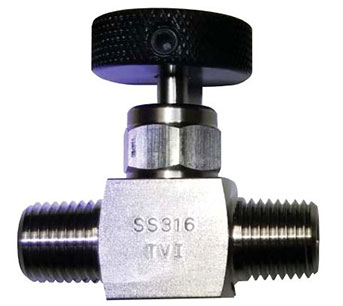

Stainless Steel Mini Valves for Liquid Propane Service

Specifications:

Materials of Construction:

• WETTED PARTS: 316 SS
• Handle: Anodized Aluminum
• Orings: Low Temp Viton
• Seat: PCTFE
• Pressure Rating:
• 316SS - 3000 psi @ 200 F
• Temp Range:
  • Low Temp: -65 F to 275 F
  • High Temp: -15F to 450F

Features:

• Stem lifting threads are isolated from process. This prevents contamination and galling
• Non-Rotating Stem provide longer lasting and more positive shut off
• Stem sealing tip is easily replaceable
• Designed to be used in 100 C oven
• Designed for severe field service
• Low Temperature Orings

Part Number	316 SS	C.S.	Configuration

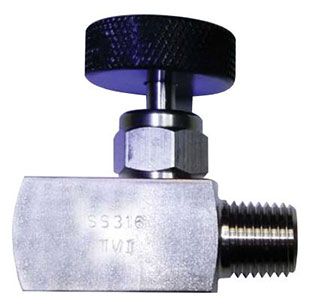

TV-NRS-GS4M4F286	X		1/4" Male x 1/4" Female
TV-NRS-GS4M286	X		1/4" Female x 1/4" Female>
